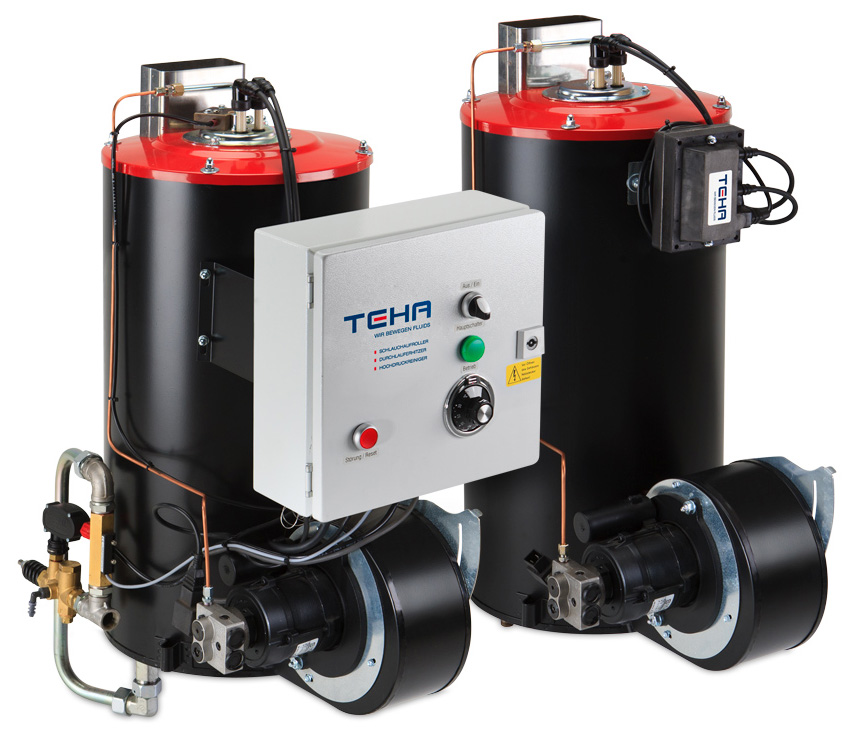

Boiler BR900
 |
Description: Water being under high pressure will be heated up by this middle high aggregate BR900 to the temperature which is preset by the thermostat. Application areas: |
Technical data BR900:
| Operating pressure: | 200bar | 300bar | 500bar | 700bar |
| Heating coil: | 1/2" |
3/8" | 3/8" | 3/8" |
| Water/Filling content: | 6,89 Ltr. |
3,55 Ltr. | 3,10 Ltr. | 1,38 Ltr. |
| Weight: | 58,5kg | 64kg | 69,2kg | 85,1kg |
| Operating voltage: | 230V 50HZ / 110V 50Hz / 12V DC |
|||
| Power capacity: | 62 - 73 KW | |||
| Operating temperature: | max. 95°C |
|||
| Oil flow (nozzle 1.75): | 5,61 - 7,42 kg/h | |||
| Exhaust gas temperature: | max. 180°C | |||
| Efficiency: | >=91% | |||
| Exhaust gas losses: | <=9% | |||
| Soot value (Bacherach): | 0 - 1 | |||
| Dimensions: | 570x405x710 mm | |||
Without safety system:
Covers of galvanized sheet steel (AISI 304 available), outer cover is also powder coated (AISI 304 available), ignition transformer, fan motor and solenoid valve pump, without switchbox, without control and safety system.
| Operating pressure: | 200bar | 300bar | 500bar | 700bar |
| 230V, heating coil steel | V1040001103 |
V1040000602 | V10400037 |
V10400037-2 |
| 230V, heating coil AISI 304 |
V1040001108 |
V1040000504 |
V1040000601 |
- |
| 12V, heating coil steel | V11400017 |
V11400004 |
V11400005 |
V11400006 |
| 12V, heating coil AISI 304 | V11400020 |
V11400012 |
V11400013 |
- |
| 110V equipment | M10430002 |
|||
With safety system:
Qualified for immediate application: Just connect with electricity, water and fuel and the machine starts working. A switchbox according to our circuit diagram, adjustable thermostat, exhaust gas temperature limiter, flow switch, safety valve, flame monitoring and 3m connecting cable.
| Operating pressure: | 200bar | 300bar | 500bar | 700bar |
| 230V, heating coil steel | V1040001407 |
V1040001110 |
V14040001404 |
X |
| 230V, heating coil AISI 304 | V1040001411 |
V1400011113 |
V1040001119 |
X |
| 12V, heating coil steel | V11400017S | V11400004S | V11400005S | X |
| 12V, heating coil AISI 304 | V11400020S |
V11400012S |
V11400013S |
X |
| 110V equipment | M10430002 |
|||
 Flame monitoring |
 Safety system |
 Thermostat |
*Notice when biodiesel is used: All fuel leading parts have to be exchanged for those that are tested and proved for biodiesel. The capacity improves by 3-4 % in comparison to normal oil. We could provide a conversion kit for delivered boilers.
