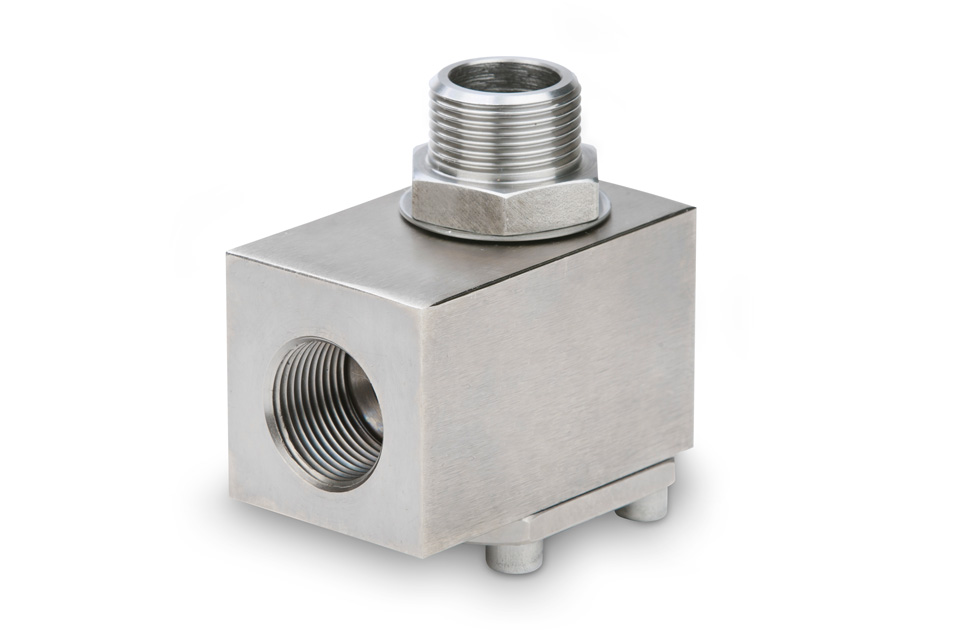

Angled swivel WDTH19 - 3/4 Inch
 |
Description: Angled swivel for foam applications and pressures up to 200bar. Suitable for hose reels with a "19" in the type description (i.e. ST40/19/2) |
Technical data:
| Type | WDTH19/Br |
WDTH19/304 | WDTH19/316 |
| Item number: | B10700036 | B1070003601 | B1070003605 |
| Nominal width: | 19mm (3/4") | ||
| Inlet (housing): | 3/4" inner thread | ||
| Outlet (axle): | 3/4" outer thread | ||
| Operating pressure: | max. 200bar | ||
| Temperature: | 1-100°C (at extra charge up to 180°C) |
||
| Suitable substances: | water / cleaning substances / air /oil / greases /etc. | ||
| Material axle: | stainless steel 304 |
stainless steel 304 | stainless steel 316 |
| Material housing: | nickelplated brass | stainless steel 304 | stainless steel 316 |
| Material sealing: | PTFE/EPDM* |
||
| Weight: | 1,1kg | 1,1kg |
1,1kg |
*For the use of chemicals the sealing materials Viton or higher quality EPDM are available at extra charge.
